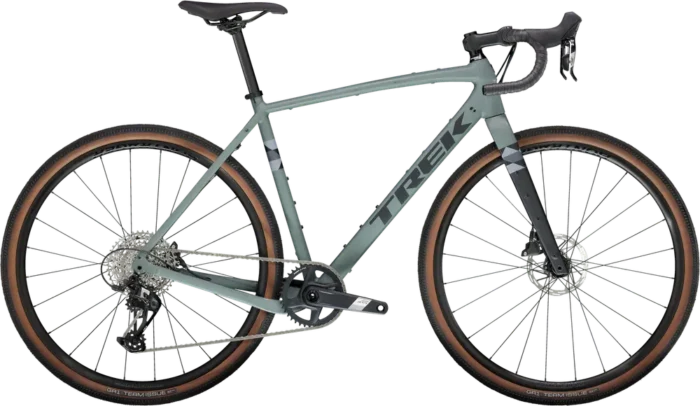

Trek Checkpoint ALR 5 | 2025
€2,499
Description
Trek Checkpoint ALR 5 For Sale Online
The TREK Checkpoint ALR 5 is an adventure-ready alloy gravel bike that’s kitted with quality parts for long, rugged, miles on anything from chunky gravel to smooth tarmac. A wealth of features like loads of mounts for bags and racks, and a SRAM Apex 1×12 drivetrain makes this Checkpoint ready to customise for your next adventure.
Features at a Glance
- Weight: 9.7
- Frame: Carbon
- Suspension: Rigid
- Fork: Carbon
- Wheels: 700c Aluminum
- Drivetrain: 1×12
- Groupset: Apex XPLR
- Brakes: SRAM Apex Hydraulic Disc
Specifications of Trek Checkpoint ALR 5 – 2025
Build
| Fork | Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
|---|---|
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Stem | Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Handlebar | Size: 49, Bontrager Elite Gravel, 38cm width; Size: 52, Bontrager Elite Gravel, 40cm width; Size: 54, 56, Bontrager Elite Gravel, 42cm width; Size: 58, 61, Bontrager Elite Gravel, 44cm width |
| Saddle | Size: 49, 52, Bontrager Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145mm width |
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length Type: Rigid |
Groupset
| Rear Derailleur | SRAM Apex XPLR, 44T max cog |
|---|---|
| Crank | Size: 49, SRAM Apex 1, 40T, DUB Wide, 165mm length; Size: 52, SRAM Apex 1, 40T, DUB Wide, 170mm length; Size: 54, 56, SRAM Apex 1, 40T, DUB Wide, 172.5mm length; Size: 58, 61, SRAM Apex 1, 40T, DUB Wide, 175mm length |
| Shifters | SRAM Apex, 12 speed |
| Cassette | SRAM XPLR PG-1231, 11-44, 12 speed |
| Chain | SRAM Apex, 12 speed |
| Brakes | SRAM Apex hydraulic disc, flat mount Type: SRAM Apex Hydraulic Disc |
| Brake Levers | SRAM Apex, 12 speed |
Wheels
| Rims | Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve |
|---|---|
| Spokes | 14g stainless steel, black |
| Front Hub | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Tires | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm |
| Disc Rotors | SRAM Paceline, rounded, centerlock, 160mm |
